Updating Sensor Data to Google Spreadsheet using ESP8266 – IoT Project

Contents

• 1 Components Required
• 2 Hardware
  • 2.1 Circuit Diagram
• 3 Software
  • 3.1 Google Spreadsheet Creation
  • 3.2 Programming ESP8266
    • 3.2.1 Arduino Code
• 4 Working
• 5 Practical Implementation
  • 5.1 Hardware
  • 5.2 Google Spreadsheet

In IoT applications, the monitored sensor data needs to be recorded. This data logging is important for data analytics. So in this tutorial, we will record the sensor captured data in a Google spreadsheet.

Components Required

• ESP8266
• 10KΩ Potentiometer
• Breadboard
• USB Cable
• Connecting Wires

Hardware

Circuit Diagram

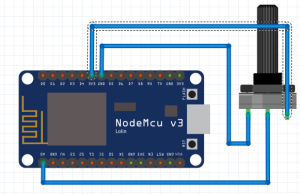

Updating Sensor Data to Google Spreadsheet using ESP8266 – Circuit Diagram

Software

Google Spreadsheet Creation

• Login to your Gmail account and open Google Drive.
• Create a new folder, name it and open the folder.
• Inside the folder right click and click on Google Sheets.
• Google sheet will be created inside the folder, Spreadsheet will open in new tab and name the spreadsheet according to your wish.
• Specify the fields in spreadsheet tables like id, time, date and value.
• Go to Tools, click on Script editor (in new tab Script editor will open).

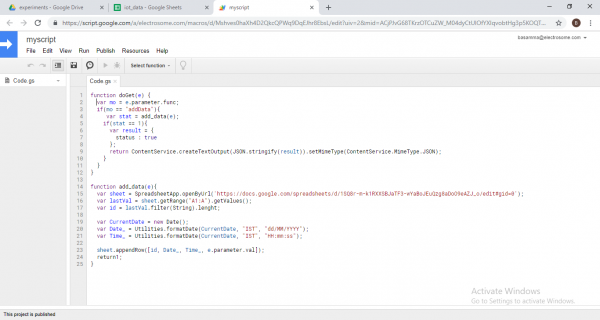

Updating Sensor Data to Google Spreadsheet using ESP8266 – Google Spreadsheet – Script editor

• Name the Script editor and write the below code in a script editor.

function doGet(e)
{
  var mo = e.parameter.func;
  if(mo == "addData")
  {
    var stat = add_data(e);
    if(stat == 1)
    {
      var result =
      {
        status : true
      };
      return ContentService.createTextOutput(JSON.stringify(result)).setMimeType(ContentService.MimeType.JSON);
    }
  }
}
function add_data(e)
{
  var sheet = SpreadsheetApp.openByUrl('https://docs.google.com/spreadsheets/d/182EnOR4vF5eVs4wGD-zOn7pKy_6BMpED8ApjIGh0C9Q/edit#gid=0');
  var lastVal = sheet.getRange("A1:A").getValues();
  var id = lastVal.filter(String).lenght;

  var CurrentDate = new Date();
  var Date_ = Utilities.formatDate(CurrentDate, "IST", "dd/MM/YYYY");
  var Time_ = Utilities.formatDate(CurrentDate, "IST", "HH:mm:ss");

  sheet.appendRow([id, Date_, Time_, e.parameter.val]);
  return 1;
}

• Save the code
• Go to publish and click on Deploy as web app.
• Under Deploy as web app, enter Project version as my function and select anyone, even anonymous for the access to the app, click on Deploy icon

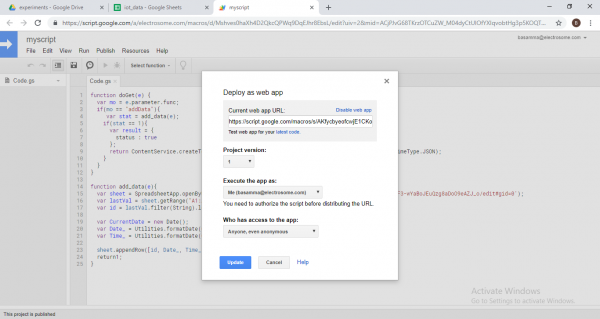

Updating Sensor Data to Google Spreadsheet using ESP8266 – Google Spreadsheet-Script editor – Deploy as web app

• It will ask for permission so we have to give permission by click on “Give permission icon”
• Select your google account and click on allow to give permission.
• You will get web app URL, note down that URL and click ok.

Programming ESP8266

Arduino Code

#include <ESP8266WiFi.h>
#include <WiFiClientSecure.h>

const char *ssid = "SERVER NAME";
const char *password = "SERVER PASSWORD";
const char* host = "script.google.com";
const char* fingerprint = "89 ff f4 0f 4d 98 09 ed e3 ef 95 f2 8a af af 22 89 08 ac 03";
String url;

void setup()
{
  Serial.begin(115200);
  delay(100);
  Serial.println();
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED)
  {
    delay(500);
    Serial.print(".");
  }

  Serial.println("");
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
  Serial.print("Netmask: ");
  Serial.println(WiFi.subnetMask());
  Serial.print("Gateway: ");
  Serial.println(WiFi.gatewayIP());
}

void loop()
{
  Serial.print("connecting to ");
  Serial.println(host);

  WiFiClientSecure client;

  const int httpPort = 443;
  if (!client.connect(host, httpPort))
  {
    Serial.println("connection failed");
    return;
  }

  float t = analogRead(A0);

  url = "/macros/s/AKfycbyvGjcryd7c5uNeX6dkleZhmjDKyTrs1L9Lf3kWlPhTZDn9JPrH/exec?func=addData&val="+ String(t);
  Serial.print("Requesting URL: ");
  Serial.println(url);

  client.print(String("GET ") + url + " HTTP/1.1\r\n" +
               "Host: " + host + "\r\n" +
               "Connection: close\r\n\r\n");
  delay(500);
  String section="header";
  while(client.available())
  {
    String line = client.readStringUntil('\r');
    Serial.print(line);
  }
  Serial.println();
  Serial.println("closing connection");
  delay(6000);
}

Working

The ESP8266 reads the sensor data from analog pin A0 and updates that sensor captured data to Google Spreadsheet. So the monitored data will be recorded in a Google Spreadsheet we can use it further for data analytics..

Practical Implementation

Hardware

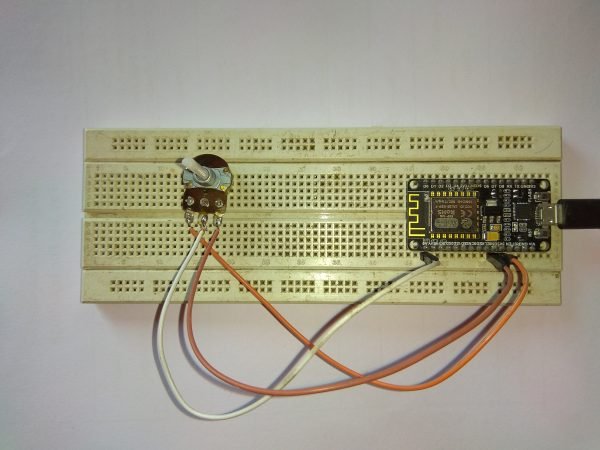

Updating Sensor Data to Google Spreadsheet using ESP8266 – Practical Implementation

Google Spreadsheet

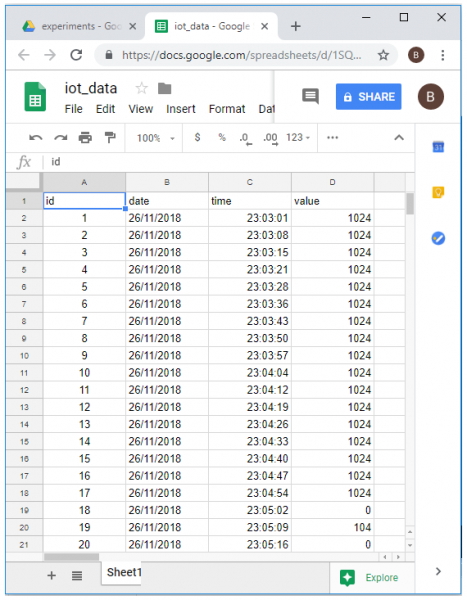

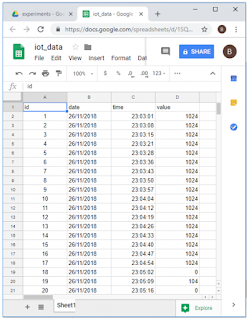

Updating Sensor Data to Google Spreadsheet using ESP8266 – Google Spreadsheet
